E-5F-HB-1 Five Function Electric intensive Care Hospital Patient Bed is a medical bed specially designed for hospitalized patients others in need of some form of health care. E-5F-HB-1 Five Function Electric Intensive Care Hospital Patient Bed have special features both for the comfort and well-being of the patient and for the convenience of health care workers.
The E-5F-HB-1 carries both CE and FDA certifications, is constructed on a powder-coated steel tube frame with detachable ABS headboard and footboard, and is rated at 260 kg load capacity. It is available for direct wholesale ordering and OEM customization through Yide Medical's factory-direct supply program.
| Five Function Electric Intensive Care Hospital Patient Bed E-5F-HB-1 | |
| Type | Electric |
| Function | backrest lifting, keen lifting, Hight adjustable, Trendelenburg&Reverse Trendelenburg, CPR |
| Bed Frame | Steel tube with powder coating |
| Head &Foot Board | ABS, Detachable |
| Hand rail | 4 pcs, ABS, Foldable |
| Caster &Locking | 125mm, Central Locking Brake System |
| Back liting | 0-75° |
| Knee lifting | 0-25° |
| Trendelenburg & Reverse Trendelenburg |
±15° |
| Hight adjust | 430-650mm |
| Weight Capacity | 260KGS |
| Overall Size | 2180*1060*430-650mm |
| Bed Surface Size | 1960*900mm |
The E-5F-HB-1 5-function electric hospital bed is specified for the following clinical settings:
Intensive Care Units (ICUs) The primary application environment for the 5-function configuration. ICU patients typically require frequent position changes for respiratory management, pressure ulcer prevention, procedural access, and hemodynamic optimization. All five motorized functions of the E-5F-HB-1 are in regular clinical use in ICU nursing routines.
High-Dependency Units (HDUs) / Step-Down Units Patients stepping down from ICU to HDU retain complex positioning needs. The 5-function configuration provides the full range required for this patient population without requiring bed substitution during the transition.
Post-Operative Recovery Wards Following major surgery — particularly cardiac, thoracic, abdominal, and orthopedic procedures — patients require motorized positioning for pain management, respiratory support, and early mobilization protocols. The Trendelenburg function specifically supports post-surgical vascular management; the backrest range supports early breathing exercise protocols.
Emergency Departments ED resuscitation bays require beds with immediate Trendelenburg capability for shock management and reliable flat positioning for CPR. The E-5F-HB-1 CPR release satisfies the emergency response requirement.
Neurology and Neurosurgery Wards Reverse Trendelenburg positioning for ICP management and precision backrest control for dysphagia management make the 5-function configuration the appropriate specification for neurology inpatient beds.
Yide Medical accepts OEM and customization orders for the E-5F-HB-1 5-function electric hospital bed, supporting distributors and healthcare brand partners in the following modification areas:
Functional Customization:
Structural Customization:
Control System:
Branding:
Minimum order quantities for OEM-customized E-5F-HB-1 variants start from 10 units. Standard specification production is available from 5 units for trial orders. Contact Yide Medical's sales team with your specification sheet for a customization quotation.
CE Certification The E-5F-HB-1 carries CE marking, certifying compliance with applicable EU medical device directives and relevant harmonized standards for electric adjustable patient beds. CE documentation (declaration of conformity and applicable test reports) is provided with each shipment as standard.
FDA Registration The E-5F-HB-1 is FDA-registered for export to the United States market. FDA documentation is available upon request for buyers importing into FDA-regulated markets.
Production Quality Controls Each E-5F-HB-1 unit undergoes pre-shipment quality inspection covering:
Packaging and Logistics Units are packed in moisture-resistant carton packaging with internal foam inserts protecting the ABS components and motor actuators during sea freight transit. Cartons are clearly labeled with product identification, model number, gross weight, and shipping dimensions in compliance with international logistics standards. Palletization is available for container loading. Sea freight, air freight, and express courier options are all supported based on buyer requirements.
The clinical case for specifying a 5-function electric hospital bed over a 3-function model centers on the Trendelenburg and reverse Trendelenburg positions:
A 3-function bed provides backrest, knee-rest, and height adjustment. For general ward use — standard nursing, post-operative recovery in stable patients, nursing home care — this covers the majority of positioning needs.
The E-5F-HB-1's additional Trendelenburg functions are specifically required for:
If the procurement specification covers ICU, high-dependency, emergency, or neurology/neurosurgery environments, the 5-function configuration is the clinically appropriate specification. For general ward and nursing home procurement where these advanced positioning requirements do not apply, a 3-function model represents a better price-to-function ratio.
To receive current FOB pricing, technical data sheet, CE/FDA certificate copies, and production lead time for the E-5F-HB-1 5-function electric hospital bed, submit your inquiry including: order quantity, destination market, voltage requirement, and any OEM customization requirements. Yide Medical's sales team responds within 24 hours with a complete commercial proposal.

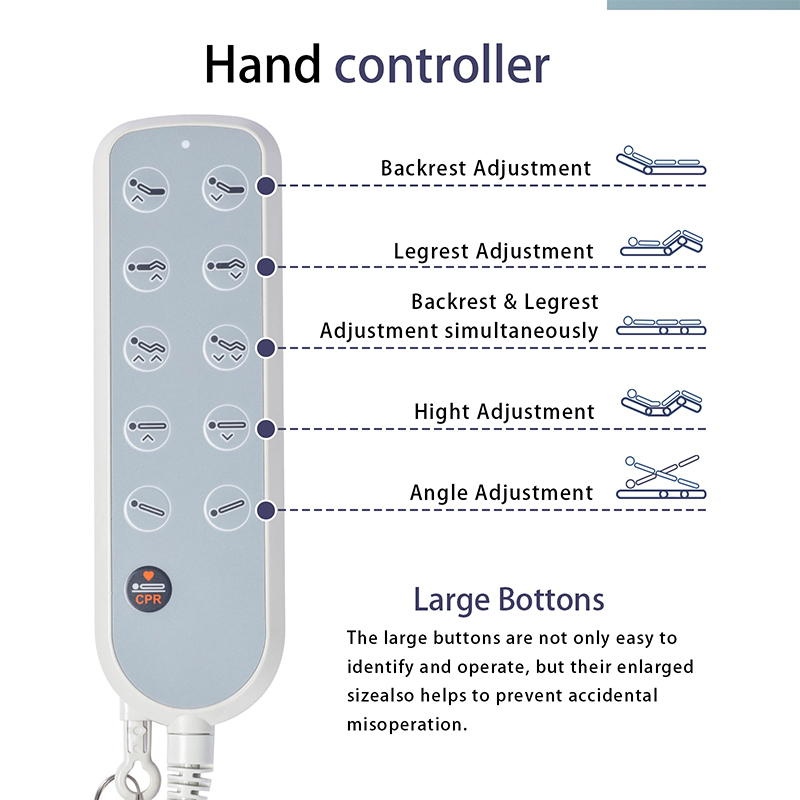

Back Rest
Knee Rest
Adjustable Side Rails
Adjustable Height for the Entire Bed
Trendelenburg & Reverse Trendelenburg
CPR
FDA
CE registration document for urine collection device
Product Inspection: Products are fully inspected before packaging to ensure they meet export standards.
Professional Packaging: Professional moisture-proof and shock-resistant packaging is applied, with neutral and customized options available
Labeling & Marking: Cartons are clearly labeled with product and shipping information in compliance with international logistics requirements.
Carton Packing & Reinforcement: Cartons are properly packed and reinforced, with palletizing available if required.
Logistics Arrangement: Sea freight, air freight, or express delivery isarranged according to customer needs.
Delivery & Tracking: Goods are shipped on schedule with trackinginformation provided.
